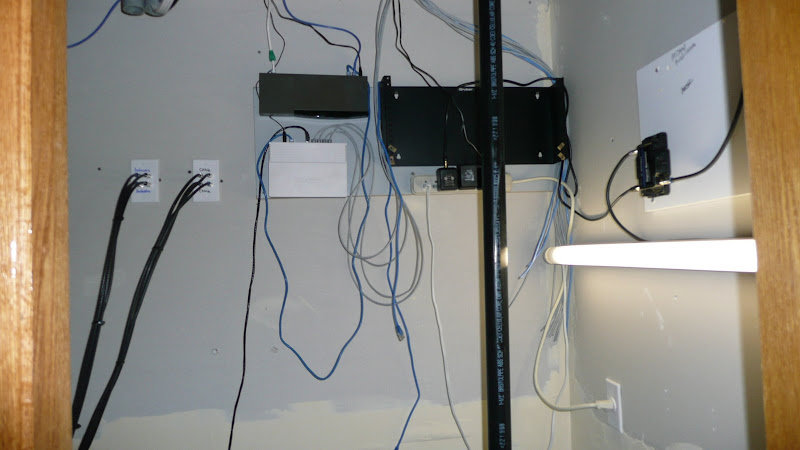

closet re-wire. Mounted are my TS-Link 10/10 16 port switch, TS-Link 10/100/1000 8 port switch. 4u wall mount waiting for 24port patch panel and wire management bracket. To the right is my Motorola two-way in-line coax amplifier. To the left you will see my 4 port cable tv wall plate, as well as my 4 port antenna wall plate which I use to feed the ATSC and NTSC tuners in my HTPC.

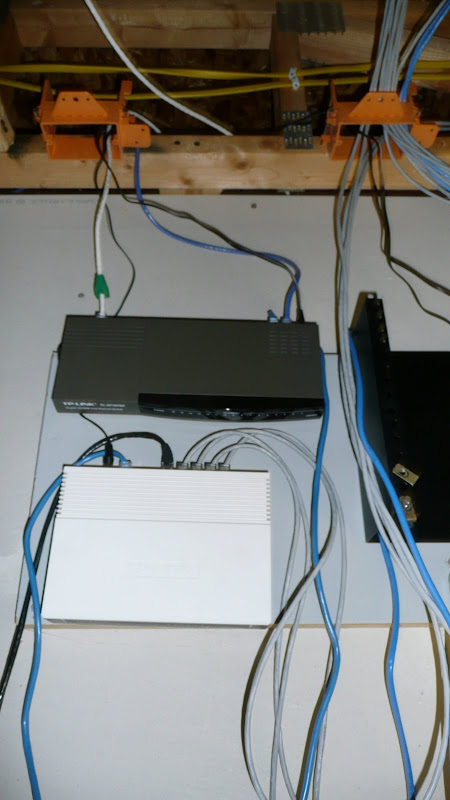

Close up of the two TS-Link switches (gray/black switch is the 10/100, which switch is the gigabit switch)

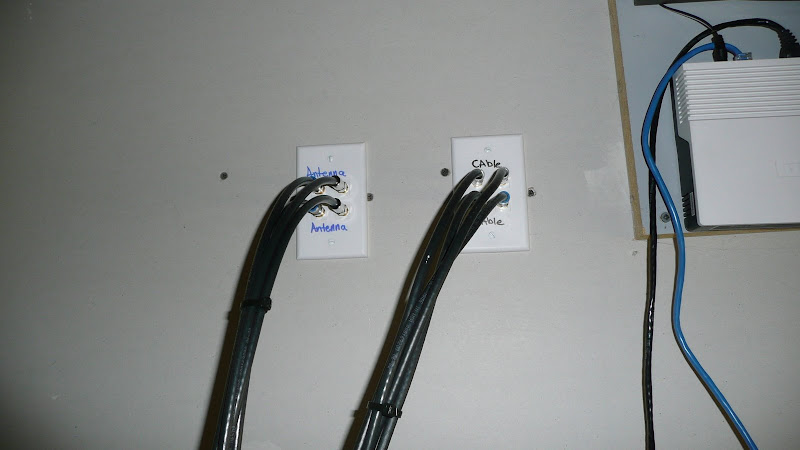

Close up of the 4 port jacks for cable tv and antenna feeds for the HTPC

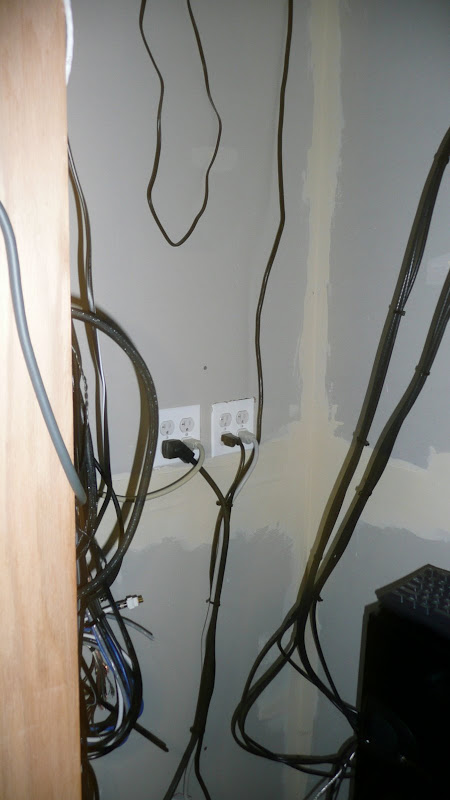

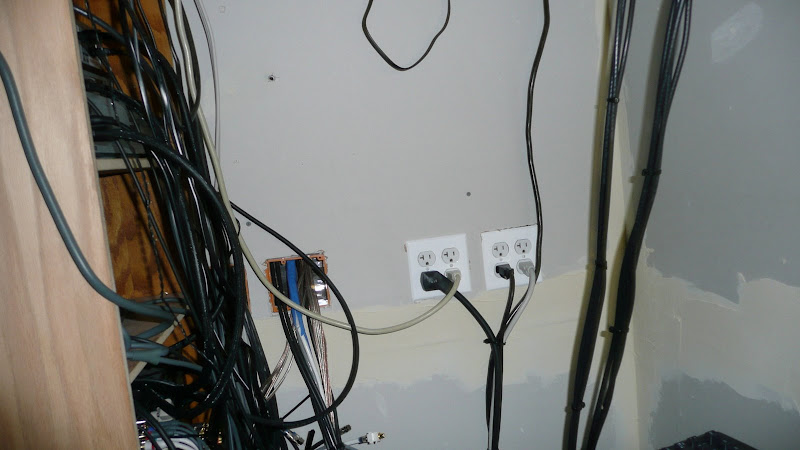

Side view. Dual double gang outlets. Each double gang outlet has a dedicated 20amp circuit. More than enough power to feed all my AV needs.

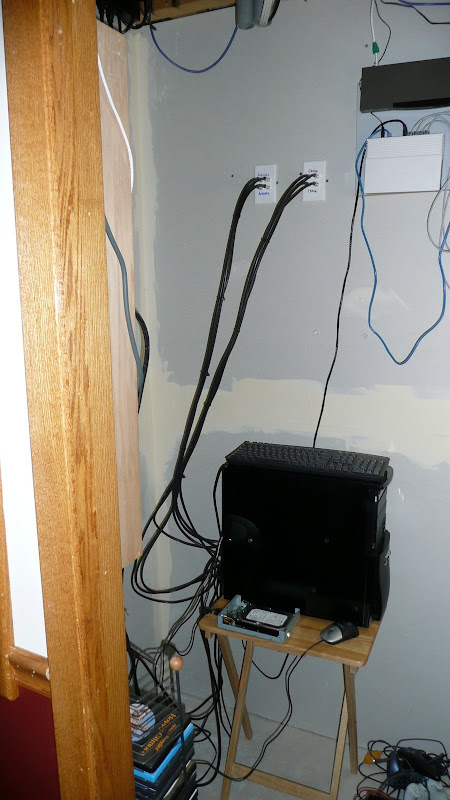

Another side view. Also shows the coax feeds into the back of my HTPC.



HTPC setup. Yes I know about the tv stand. Looking for a better solution that won’t break the bank.
